Introduction

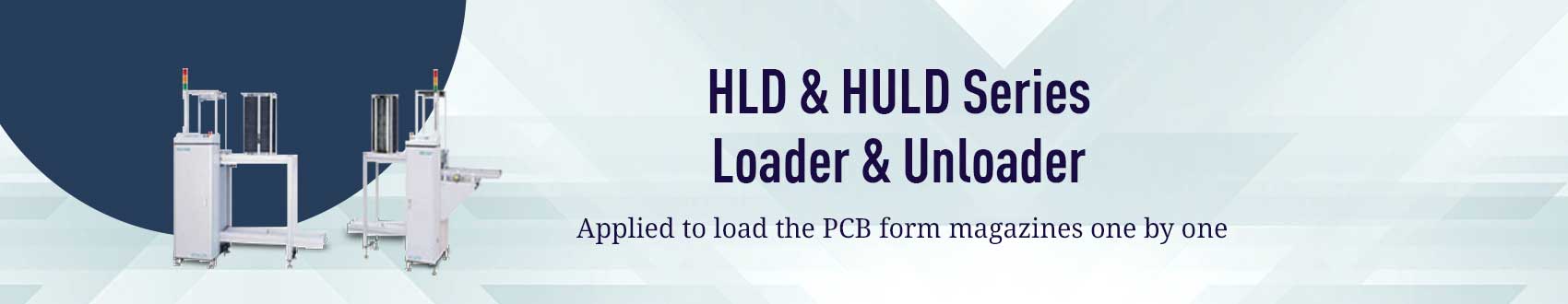

Applied to load the PCB form magazines one by one the downstream machine (such as printers) or unhold & storage the PCBs from upstream machine.

Features

  • Stable & durable structure to ensure the transmission is smooth.
  • Touch screen operation interface, easy and simple.
  • It is compatible to all kind of standard PCB magazines.
  • The up & down step pitch is available adjusting by the thickness of PCB of PCBA.
  • Equipped with the sound and light alarm function to awake the operator.
  • Standard with SMEMA ports & cables, available for dual lane, dual speed control & tailor-made for different width & length.
Items Description HLD - 400B / HULD - 400B HLD - 400C / HULD - 400C HLD - 400D / HULD - 400D HLD - 460C / HULD - 460C
1 Dimension L x W x H (mm) HLD: 1125*765*1250 HLD: 1335*845*1250 HLD: 1505*910*1250 HLD: 1860*970*1250
HULD: 1550*765*1250 HULD: 1860*845*1250 HULD: 2060*910*1250 HULD: 2330*970*1250
2 Weight (Kg) HLD: 180Kg HLD: 210Kg HLD: 240Kg HLD: 280Kg
HULD: 200Kg HULD: 230Kg HULD: 260Kg HULD: 290Kg
3 Power Supply 1 Phase. 220V AC 50/60Hz
4 Total Power HLD: 225W HULD: 240W HLD: 255W HLD: 270W HLD: 275W HLD: 290W
5 Air Supply 5 - 7 Kg/cm2
6 PCB Max. Size (L*W) 330* (60 - 250) (mm) 400* (60 - 330) (mm) 525* (60 - 400) (mm) 530* (60 - 460)(mm)
Magazine Size (mm) 355*320*565 400*460*565 535*460*565 535*530*565
7 Conveyor Height 900+/-20 (mm)
8 PCB Flow Direction Left to Right (Or Right to Left)
9 Step Pitch Setting 10, 20, 30, 40, 50 (mm) PLC + Touch Screen Panel
10 Control Method 10, 20, 30, 40, 50 (mm) PLC + Touch Screen Panel
11 Pusher SMC Cylinder
12 SMEMA Interface Standard
13 Export Vacuum Package Standard

HC Series SMT Conveyors Specification

Application

Applied to connect the upstream & downstream line of SMT machines with linking & inspection function.

Features

  • Stable & durable structure to ensure the transmission is smooth
  • The lead screw adjustment can make the conveyor width parallel always kept in same
  • The wear-resisting ESD belt works with low noise in long life
  • PLC control and easy to maintenance design
  • Standard with SMEMA ports & cables, available fir dual lane, dual speed control & tailor-made for different width & length

Linking Conveyors

Inspection Conveyors

Items Description HC - 500C
1 Dimension: L x W x H (mm) Rail Length *920 *920(mm)
2 Weight (Kg) Approx: 85KG
3 Power Supply 1 Phase, 220V AC
4 Power Consumption 80 W
5 PCB width 50 - 500 (mm)
6 Conveyor Height 900+ / -50 (mm)
7 Conveyor Speed 500 - 10000 (mm/min.)
8 PCB Flow Direction Left to Right
9 Rail Fixed Side Front Rail Fixed
10 Max. PCB Weight 2KG if belt support edge is 4mm, 1Kg if belt support edge is 3mm
11 PCB Edge Support 3mm / 4mm
12 Flat Belt Width 3mm / 4mm
13 Control Method PLS + Sensors (Front 1, Middle 1 & end 1 total 3 sensors)
14 Operation Mode Manual / Auto / Pass Button (Option: Foot switch)
15 Operation Table ESD Rubber Mat covered Table
16 PCB Stop Nos. Only Stop 1 PCB at same time
17 SMEMA Interface Standard
