Introduction

Specially designed for high precision pre-reflow inspection, the TR7700 SII DT is a high performance desktop AOI solution, featuring a large 4 MP color camera and capable of inspection speeds of up to 120 cm 2 / sec at 15 µm. The system combines a highly flexible RGB+W lighting system with low-angle lighting and TRI’s trademark dynamic imaging for better inspection of polarity and black components and is capable of inspecting 01005 fine pitch components in both lead-free and legacy PCB assemblies.

AOI Key Features

  • High performance desktop AOI for pre/post-reflow
  • Large format color camera ready for 01005 component inspection
  • 100% Offline Program Editing
  • Rapid Programming Interface with Auto Library and Offline Editing Precision
  • Height Repeatability
  • Calibration target (at 3s) <1% on TRI certification target
  • Solder GR&R (± 50% Tolerance) <<10% at 6σ
  • High Performance Desktop AOI Platform
  • Combining state of art inspection software and a robust, stable hardware platform, the TR7700 SII DT offers a high performance, affordable alternative to inline AOI inspection systems. Full color inspection with advanced algorithm control delivers reliable results in either 10 or 15 μm system resolutions
  • Speed: Fast Inspection in Both Resolutions
  • 15 μm: 120 cm2/sec (18.6 in2/sec)
  • 10 μm: 60 cm2/sec (9.3 in2/sec)
  • 330 x 250 mm: 9.6 sec (15 μm);18.8 sec (10 μm) (excludes board loading & unloading time)

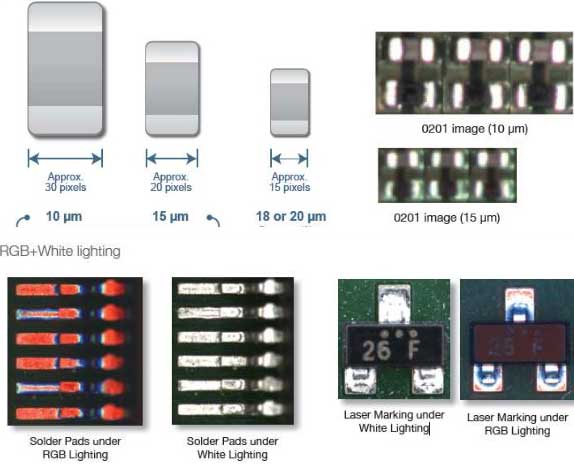

High speed image acquisition in high resolution
