Introduction

TR7700 SIII DT is a high performance desktop AOI solution designed for maximum precision and ease of use. Using TRI's exclusive multi-phase lighting and next generation inspection software, TR7700 SIII DT delivers excellent defect detection with quick & easy programming ideal for frequently changing productions.

AOI Key Features

  • High precision desktop AOI solution for pre/post reflow inspection
  • Quick & Easy programming with IPC standard compliance
  • Advanced algorithms and multi-phase lighting for minimum false calls
  • Intelligent Rapid Programming Interface with Auto Library and Offline Editing
  • Height Repeatability
  • Calibration target (at 3s) <1% on TRI certification target
  • Solder GR&R (± 50% Tolerance) <<10% at 6s
  • Flexible multi-board Merging & Speedy Inspection
  • Simultaneous access to multiple component information for easy programming
  • Saves multi-fiducial mark scanning time for multi-board programs
  • Auto-clamping Conveyor System
  • Single button PCB loading and unloading reduces operator workload and improves board loading time

Intelligent Easy Programming Interface

New intelligent programming process significantly reduces programming time using automated component library and integrated board warp compensation.

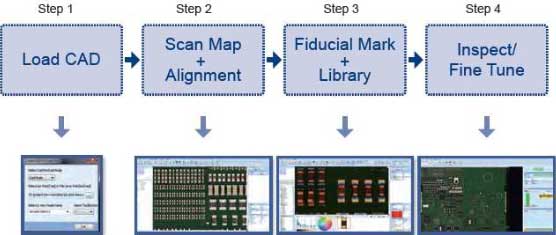

Programming Flowchart

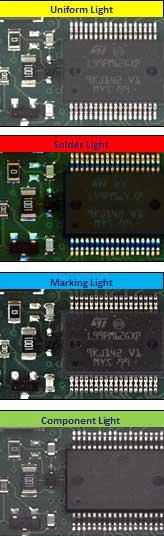

Multi-Phase Lighting
