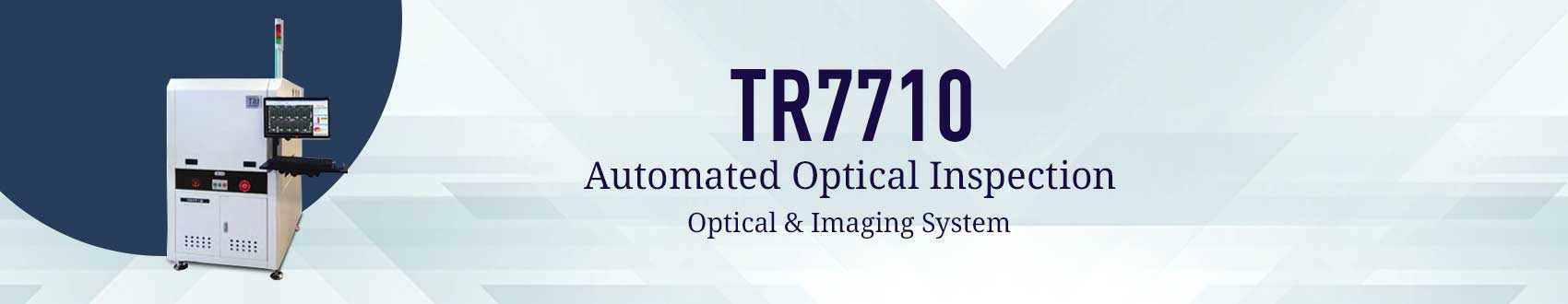

The economical customizable TR7710 combines a precise high resolution camera system and TRI&'s exclusive multi-phase lighting to capture detailed PCB panel images. New optical solution offers increased DOF range for tall components with optional high clearance. TRI Series III AOI-compatible inspection software combines excellent defect detection and easy smart CAD-based programming into a cost effective, customizable AOI solution designed to fit any budget.
Key Features
| Optical & Imaging System | |
| Top View Camera | 6.5 mpix high speed color camera |
| Lighting | Multi-phase RGB+W Led |
| Optical Resolution | 10 or 12.5 μm |
| Imaging Method | Stop-and-Go |
| Imaging / Inspection Speed | |
| 12.5 μm | 51.2 cm 2 /sec (7.9 in 2 /sec) |
| 10 μm | 32.8 cm 2 /sec (5.1 in 2 /sec) |
| Pre- / Post-Reflow Inspection Functions | |
| Component | Missing, Tombstoning, Billboarding, Polarity, Rotation, shift, Wrong marking (oCV), defective, upside down, extra Component, Foreign material |
| Solder Joint | Excess solder, Insufficient solder, Bridging, through-hole Pins, Lifted Lead, Golden Finger scratch/Contamination |
| X-Y Table & Control | Ballscrew + AC servo with motion controller |
| X-Y Axis Resolution | 1 μm |
